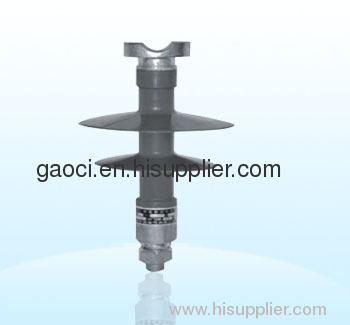

This product is applied to high voltage power line service,and has features of good gydrophobicily,anti-ageing,anti-leakage trace and electric erode proof,tensile strength and bending strength strong mechanical strength,shock resistance good quakeproof adn brittle failure proof,light weight,easy to installation and the installation outline of top and base are the same size with porcelain-pin type,they can exchange to use each other.



Product Model

Rated Voltage

Rated mechanical strech load

Structure Height

Minimum nominal creepage distance

Insulating distance

Diameter of shed

Lighting impulse withstand voltage(peak)

Power frequency wet withstand voltage

(kV)

(kN)

(mm)

(mm)

(mm)

(mm)

(kV)

(kV)

FPQ-10/4T20

10

4

215

125

280

148/118

75

45
